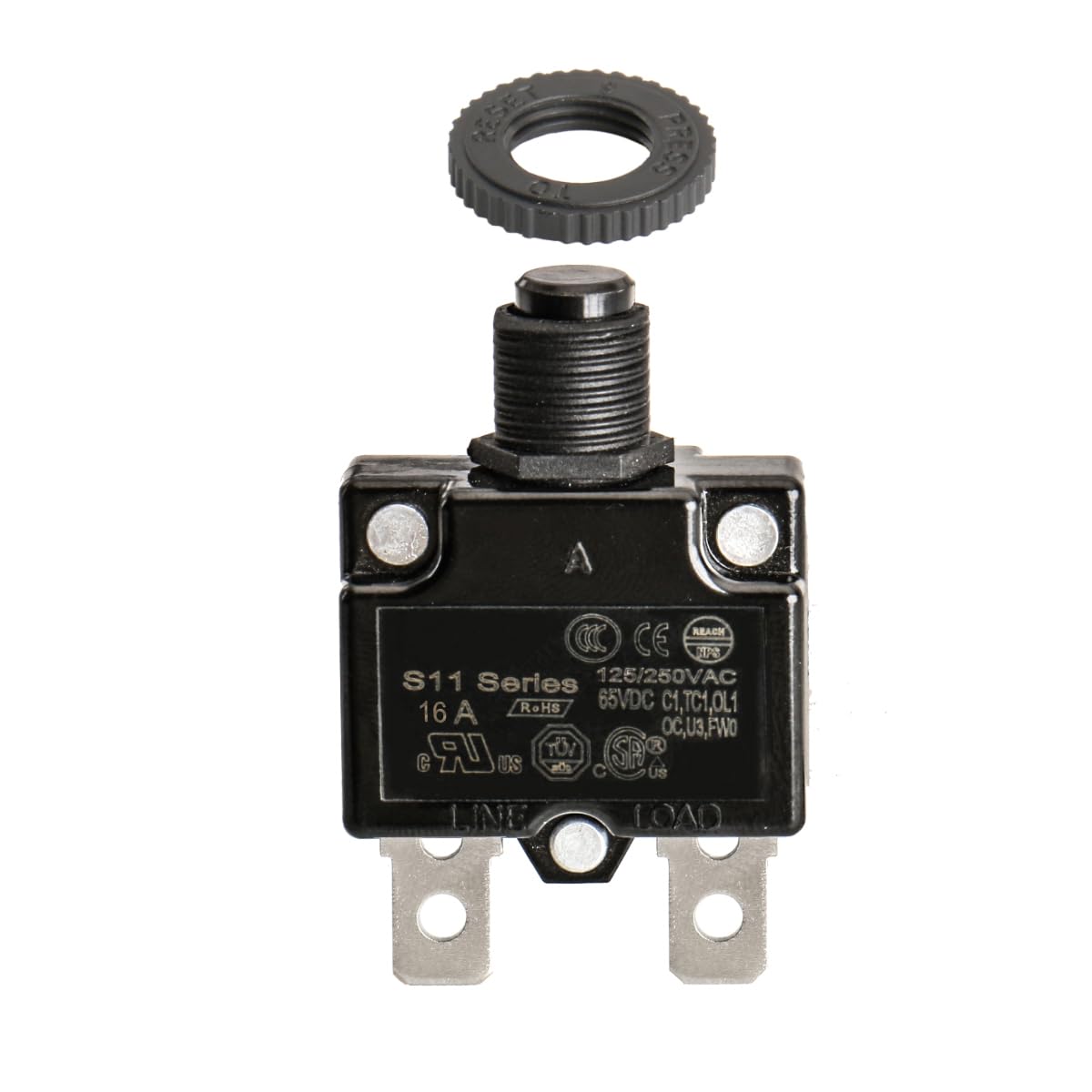

BAOMAIN 16A Thermal Overload Protector Circuit Breaker, 125/250V AC 65V DC Manual Reset S11 Series for Treadmills, Generators & Power Strips 2-Pack

Product description Professional 2-Terminal Installation GuideWiring your BAOMAIN S11 series overload protector is simple and fast. For the best safety results, follow this straightforward logic:LINE Terminal: Connect your main power supply wire to the terminal marked "LINE".LOAD Terminal: Connect the wire leading to your motor, appliance, or tool to the terminal marked "LOAD".Wiring Compatibility: The 6.3mm (1/4") male terminals are perfect for standard quick-disconnect spade connectors, making retrofitting old panels a breeze.Reset Tip: If a power surge occurs, the button will pop up. Wait approximately 30-60 seconds for the internal thermal element to cool down, then press the button back in to restore power.Approval UL, CSA, TUV, CE,RoHS, REACH Environmental Protection Certification. SpecificationRated Voltage: 125/250VAC / 65VDCTerminal Width: 6.3mm (1/4") Screw Hole Dia: 10.8mm/0.425''The leaked current: ≤0.5mARated Frequency ：50/60HzRated breaking capacity: 6 times rated currentWithstand Voltage Strength: 1500VAC/1minInsulation Resistance: 500VDC 1Min≥100MΩRated short-circuit capacity：125VAC/1000A，250VAC/1000ATripping Characteristics The test environment temperature:25℃±3℃1000% of Rated Current:0.12-0.7s” Seconds Trip600% of Rated Current:0.3-1.7s” Seconds Trip200% of Rated Current:5-35s” Seconds Trip135% of Rated Current:Trip within 1 Hour100% of Rated Current:Hold, No TripWidely Application: Water pump, deep well pump, jet pump, fuel pump, air compressor, treadmill, grinder, mixer, herbal grinder, garden and park equipment (lawn mower, etc.), various main control panels (yacht panels, diesel and gasoline generator panels, etc.), cleaning machine, sweeper, sink garbage disposal, power tool (hydraulic drill, bench drill), agricultural and forestry equipment (electric sprayer, etc.), industrial electrical equipment (transformer, inverters, voltage stabilizer, voltage regulator, etc.), UPS(uninterruptible power system ),New Energy (charging pile, etc.), power strip, extension cord, and other fields. Manufacturer Contact Information Baomain Electric

• MANUAL RESET THERMAL LOGIC: Features a high-precision 16A thermal sensing mechanism that automatically trips to break the circuit when an overload is detected. This "Normally Closed" protector ensures continuous safety for your equipment and allows for a quick manual reset by simply pressing the button once the fault is cleared.
• COMPACT PANEL MOUNT DESIGN: Designed for easy installation into standard 10.8mm (0.425") mounting holes. The slim S11 series body (1.16" x 0.9" x 0.57") fits seamlessly into crowded control panels, yacht dashboards, and various machinery enclosures with limited space.
• VERSATILE POWER SPECS: Fully rated for 125/250V AC and 65V DC systems, offering flexible protection for both household appliances and industrial power systems. Certified by UL, CSA, and CE to meet the highest safety and environmental protection standards.
• PREMIUM BAKELITE CONSTRUCTION: Constructed with high-strength flame-retardant Bakelite and durable plastics to ensure superior heat resistance. Equipped with 6.3mm (1/4") quick-connect terminals, it provides a secure and stable connection for both professional crimping and DIY wiring.
• VALUE 2-PIECE PACK: This economical package includes 2 overload protectors and mounting nuts, ensuring you always have a high-quality spare on hand. Perfect for multi-pump systems, power strips, or maintaining critical equipment like air compressors and power tools.
